Fast And Flexible Conversion, Ultra-high Productivity

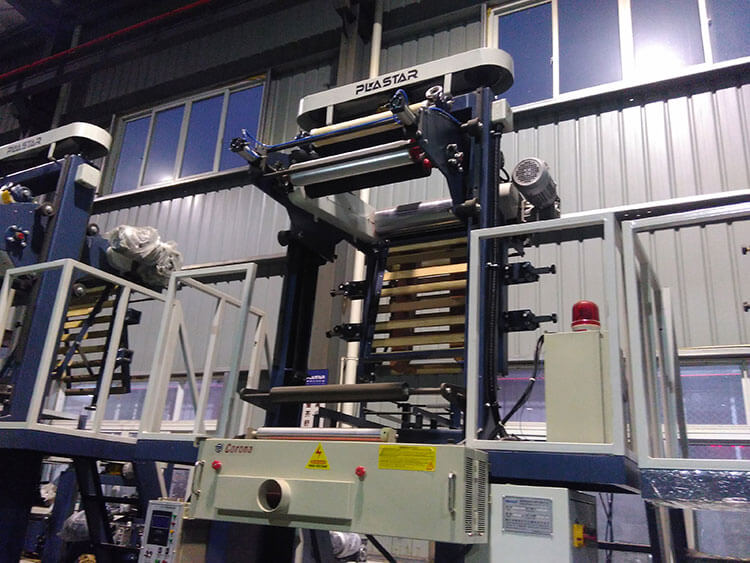

Mini Blown Film Machine

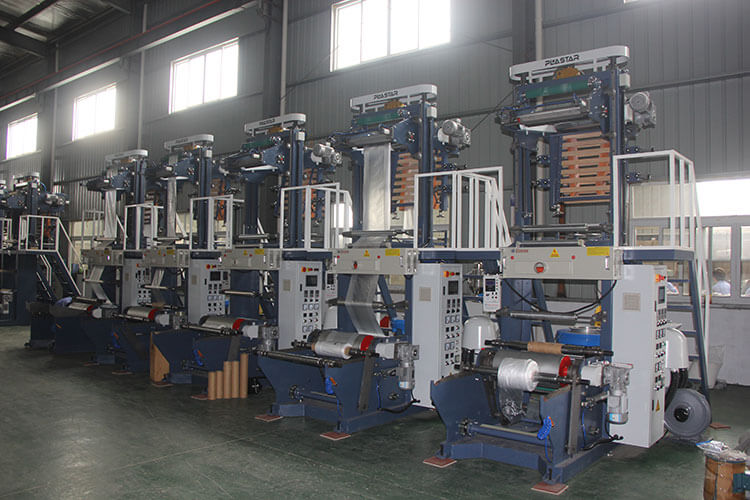

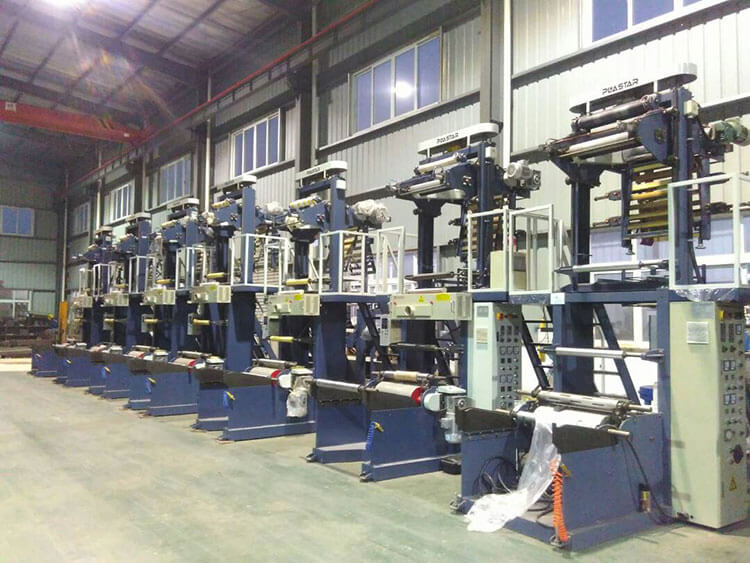

The production line of mini-layer blown film machines produced by our company is suitable for blowing high and low pressure polyethylene, fully biodegradable materials, etc. The products are widely used in supermarket flat bags, vest bags, garbage bags, etc. The film blowing unit boasts ultra-high productivity, stable performance, and extremely low power consumption, therefore achieving higher efficiency with simple design. It boasts a production capacity twice as high as the industry average, and outstanding performance for new materials, recycled materials, and degradable materials. Simple operation and quick specification replacement can save labor and plastic waste, thus obtaining the best film and high yield efficiency.

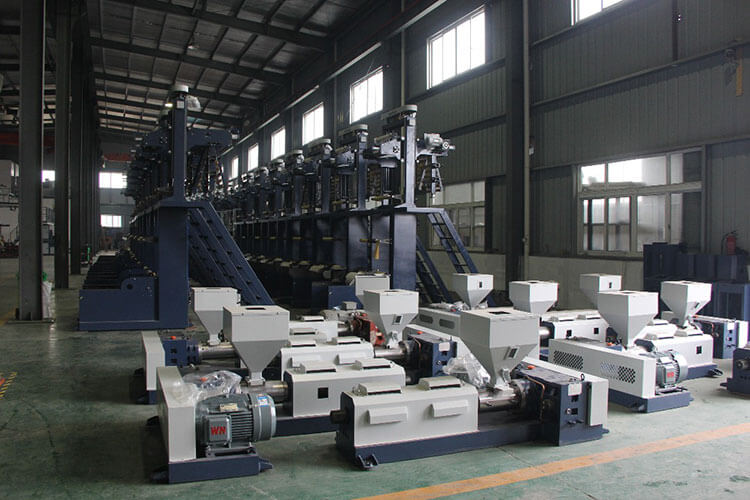

Forced feeding main machine: All main machines of PLASTAR adopt dual-alloy forced-feeding screws that feature excellent hardness and wear resistance. It can still plasticize a large number of particles under the environment of high speed and high pressure. The service life can reach 3-5 times of ordinary screws.

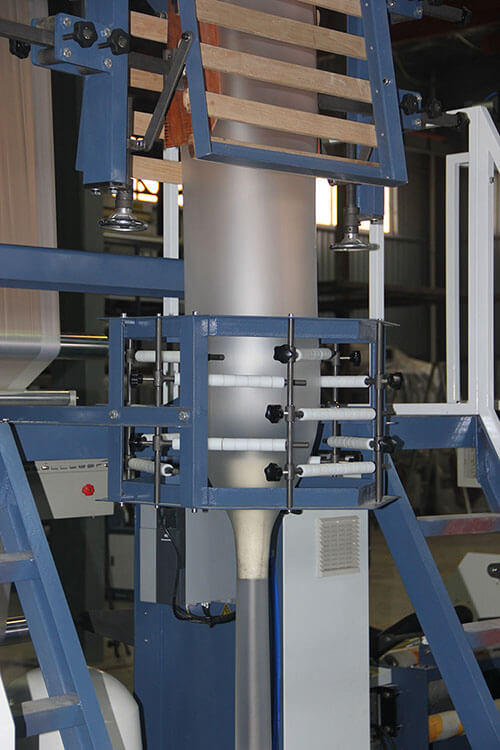

Cone stacking mold: The production line of single-layer co-extrusion blown film machines adopts a single-layer cone mold. We optimize the layout by virtue of thermofluidics and observe the fluid condition with the help of 3D simulation software. We are sure that after a high degree of polishing and coating, each runner has the ability to clean itself under the high pressure and high speed scouring of PLASTAR’s high-speed screws. It will reduce waste in the particle replacement process and shorten the downtime of maintenance.

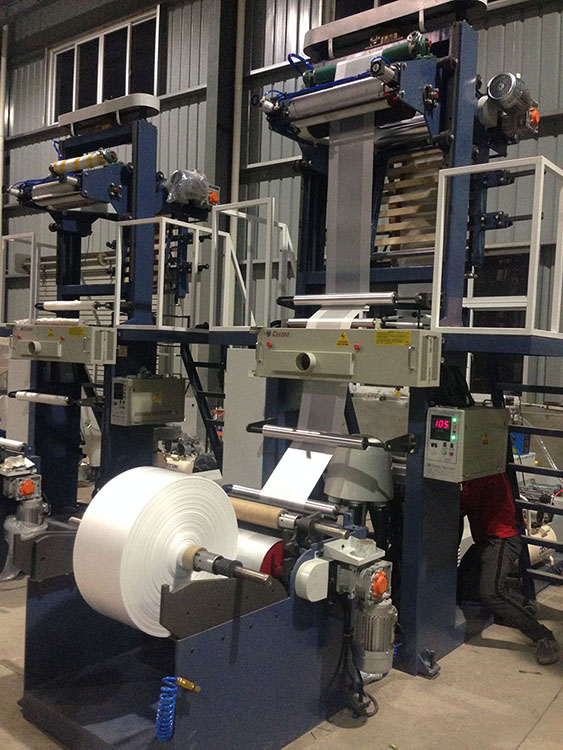

Advanced automation module: The production line of single-layer co-extrusion blown film machines has advanced automation functions, such as centralized feeding, batching, weight control, and automatic central winding. All functions are integrated on the touch screen, thus simplifying operations and increasing productivity.

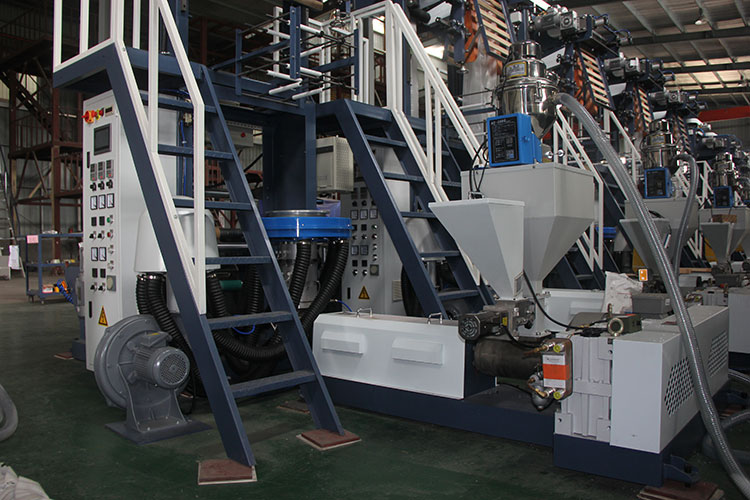

Mini Type Blown Film Machine
Model MSD-45
Suitable Material HDPE / LDPE / LLDPE
Film Width 500 mm
Film Thickness 0.008 - 0.05 mm
Max. Output 45kg / h
Extruder
Screw Diameter 45
Screw L/D 30:1
Barrel Cooling Water Cooling
Main Motor Power 15kw
Total Power 37kw

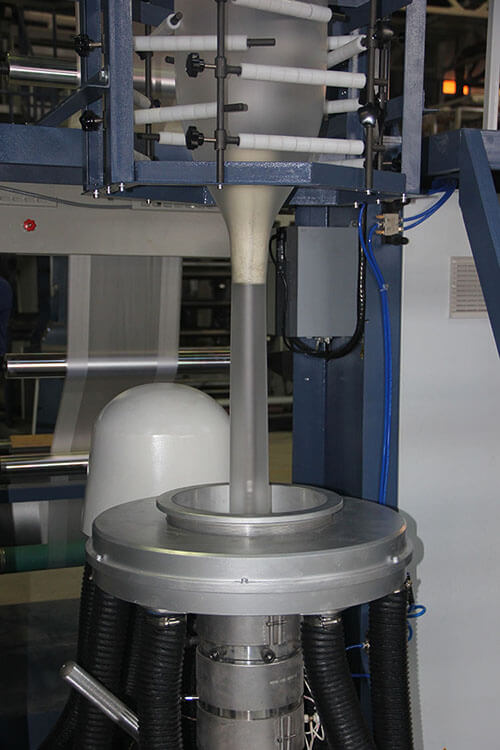

Die Head
Die Head Type Single Layer
Air Ring Double lips air ring
Traction Roller Width 600 mm
Effective Width 500 mm
Traction Speed 120m / min

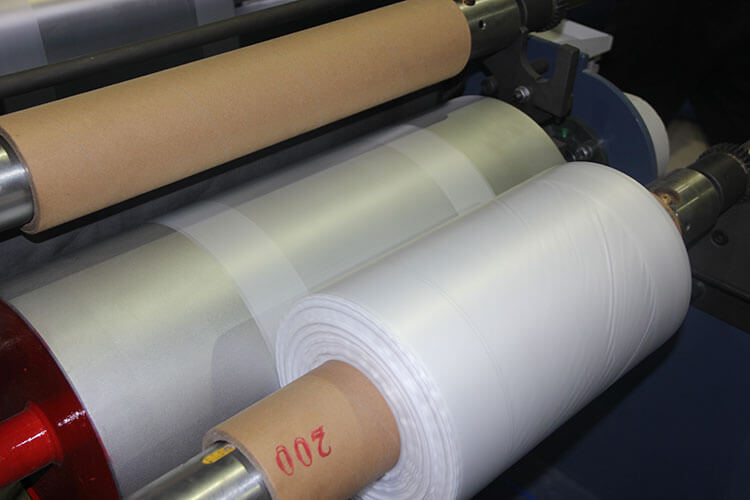

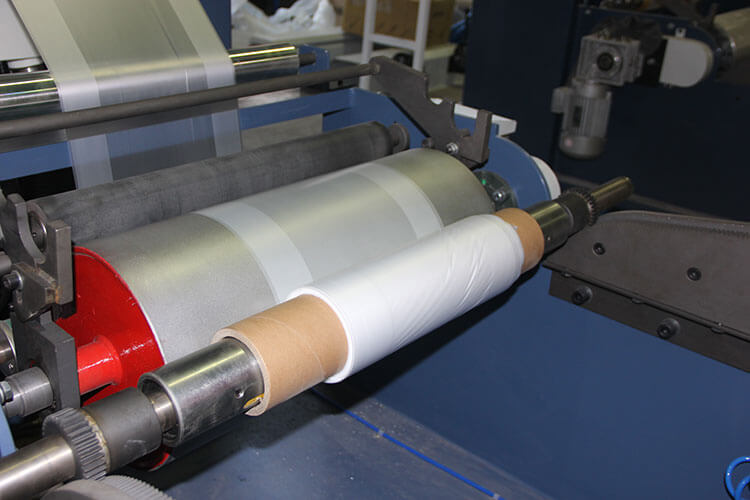

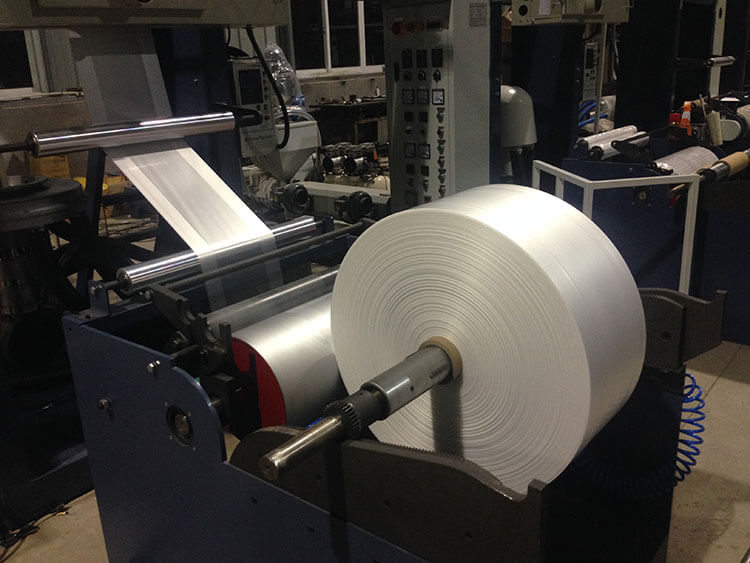

Winding Unit
Wingding Type Friction type automatic single / double winder
Wingding Speed 120m / min
Voltage 380V, 50Hz
Dimension 4500 * 2000 * 3700 mm
Weight 1.3 T

200kg Mixing Machine

Four-component Feeder

Loss-in-weight Feeder

Corona Treatment Rack

Leftover Material Recovery Machine

Leftover Material Recovery Machine-with Feeder

Air Compressor

Suction Machine
