LDPE Blown Film Machine - All You Need to Know

2024-01-30

LDPE Blown Film Extrusion Technology


Explore LDPE film production through the sophisticated features of LDPE Blown Film Extrusion Machines. Specifically designed for thin plastic films and bags, these machines transform LDPE resin into a blown tube, which is stretched, cooled, and refined through precision slitting and winding. LDPE resin, known for unmatched flexibility, strength, and moisture barrier properties, takes center stage in manufacturing plastic bags and packaging films, outshining alternatives like HDPE and LLDPE. LDPE films set a new standard with enhanced clarity and gloss, revolutionizing plastic film production.

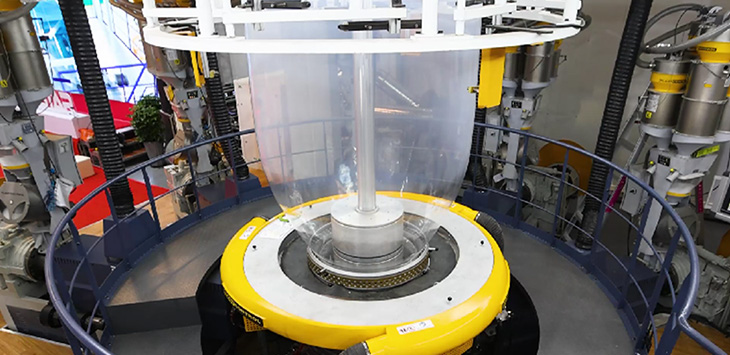

LDPE Blown Film Machine - All You Need to Know


The Main Components of a LDPE Blown Film Line


  • Extruder

    This melts, mixes and conveys the LDPE resin to the die at a constant pressure and temperature. Single screw extruders are commonly used for LDPE.

  • Die

    This forms the melted polymer into a circular annular die shape. It has an opening or gap that the melt passes through to form the bubble.

  • Air Ring

    This blows air evenly onto the extruded bubble to cool and solidify the film. It controls film thickness, frost line height and clarity.

  • Collapsing Frame

    This collapses the inflated bubble into a double layered layflat film for winding onto rollers.

  • Winder

    Powered rollers that continuously wind up the flattened film.

  • Haul-off

    Pulls the film upwards from the die through the process at a controlled speed.

  • Nip Rolls

    Provide tension control between extruder and winder.

  • Bubble Stability Accessories

    Guide rolls, shields, baffles etc. to keep the bubble stable during expansion.

  • Control Systems

    Automated controls for monitoring and adjusting process parameters.

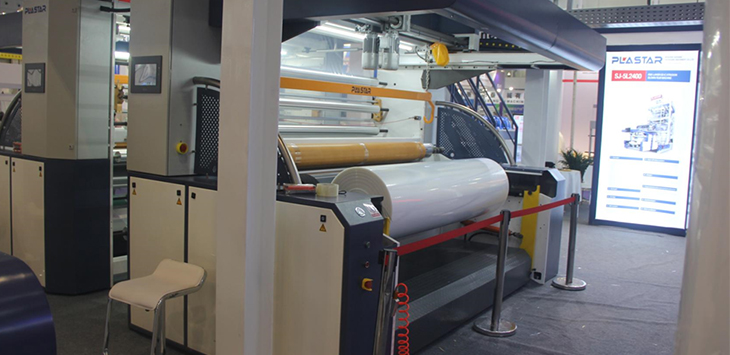

The Main Components of a LDPE Blown Film Line


Key Features and Specifications


Modern LDPE blown film extrusion machines are equipped with advanced features and precise controls to maximize production efficiency, film quality, and ease of operation.

Key Specifications to Look for Include :

  • Output Capacity

    ➢ Output rates ranging from 45 kg/hr up to 300 kg/hr or higher
    ➢ Multi-layer options with up to 7 layers available
    ➢ Wide range of die diameters from 100 mm to over 400 mm
    ➢ High performance extruder drives with AC or DC motors

  • Film Thickness Control

    ➢ Closed loop thickness control systems
    ➢ Ultrasonic and/or infrared gauges for real-time measurement
    ➢ Adjustable die lips and automation for precision thickness profiles

  • Cooling and Collapsing

    ➢ Optimized cooling ring and collapsing frame design
    ➢ Adjustable air rings and diffusers for even airflow
    ➢ Efficient bubble stabilization with minimal stress

  • Winding and Slitting

    ➢ Turret or oscillating winding systems
    ➢ Contactless winding drives for smooth, wrinkle-free rolls
    ➢ Dual cantilevered slitting station with top and bottom trimmers
    ➢ Quick-lock slitting knives and spacers for fast changeovers


Barrier Film for Food Packaging


Advanced Control Systems

LDPE Blown film extrusion machines have come a long way in implementing advanced process control systems to improve efficiency, repeatability, and ease of operation. Intelligent temperature controls, auto gauge adjustments, and motor innovations allow operators to produce consistent, high-quality film with less manual oversight.

  • Intelligent Temperature Controls

    Modern LDPE blown film lines utilize intelligent temperature control systems to maintain precise temperature zones. This includes separate controls for barrel, clamp, die, and air rings linked to PID algorithms and thermocouples. Operators can input their desired temperature profile and the system will automatically adjust heating elements and cooling fans to match. Temperature deviations trigger alarms so operators can immediately address issues before film quality is impacted. Some systems even allow storing customizable profiles for quick changeovers between materials and products.

  • Auto Gauge Control

    Maintaining consistent film gauge (thickness) is critical for quality and reduces material waste. Advanced control systems use optical sensors to provide continuous gauge measurement and feedback. The system automatically adjusts screw speed, nip rolls, and haul-off rates to maintain the target gauge profile, even when line speed or throughput is changed. This constant monitoring and correction results in less operator intervention and consistent film properties.

  • Motor and Drive Innovations

    AC vector drives and servo motors allow incremental and rapid adjustments to screw speed, take-up rates, and other motion parameters. This facilitates quick changeovers and optimization during startup. Integrated controllers network power supplies, drives, and motors for coordination. Some systems even have auto-tuning algorithms to optimize response times and stability. This reduces oscillation-related defects.


Improving Film Quality

A key goal in blown film extrusion is producing film with consistent quality. This requires uniform film thickness, consistent film properties across the width, and minimizing defects.
Several design factors contribute to improved film quality on LDPE blown film lines :

  • Advanced die design with spiraled internal channels ensures even flow distribution and tempers film as it exits the die. This promotes uniform thickness.

  • Intelligent automatic gauge control systems monitor and adjust pressures along the die to maintain consistent thickness. Some systems have multiple pressure sensors to detect variations across the die width.

  • High-precision air rings or IBC systems provide uniform cooling as the bubble expands, avoiding temperature variations that lead to thickness fluctuations.

  • Chilled air cooling systems allow faster line speeds by accelerating bubble solidification while maintaining film quality.

  • Precise nip roll and haul off systems with tension control prevent film stretching and neck-in, preserving uniform thickness.

  • Advanced extruder temperature controls and screens maintain melt consistency, stabilizing film properties.

  • High-quality filtration systems and breaker plates filter out contaminants, preventing gels and unmelts that cause defects.

  • Smooth die surfaces prevent melt fractures and flow irregularities that lead to gauge bands and other defects.

  • Regular die maintenance and cleaning sustains optimum performance.


With advanced blown film lines incorporating the latest technology, processors can achieve superior film quality with minimal defects. This allows them to maximize productivity and profitability when producing LDPE bags and sheeting.

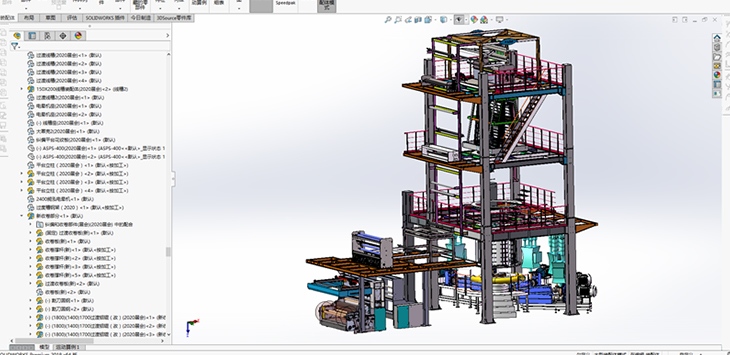

LDPE Blown Film Line -Improving Film Quality

LDPE Blown Film Line - design factors


Energy Efficiency

Advances in energy efficiency are making LDPE blown film extrusion more sustainable and cost-effective. Here are some of the ways the latest blown film lines are reducing energy usage and environmental impact :

  • Energy efficient drives

    AC vector drives offer precise speed control and energy savings compared to older drive systems. By matching the motor speed to the process requirements, they consume less electricity.

  • Waste heat recovery

    Heat exchangers can capture waste heat from the extrusion process and reuse it to heat water or pre-dry resin. This reduces the need for separate water heating and drying systems.

  • Reducing carbon footprint

    Energy efficient extruders, pumps, and other components minimize electrical consumption. This decreases fossil fuel usage at power plants and lowers carbon emissions.

  • Lightweight extruder design

    New extruder designs use advanced materials to reduce weight and decrease energy needs for starting/stopping and acceleration. Lighter components also cut down on raw material usage.

  • Optimized hydraulics

    Precision hydraulics use just the required amount of pressure and fluid flow. This eliminates wasted pumping power and needless energy consumption.


By upgrading to the latest energy saving blown film equipment, processors can achieve significant cost savings while also reducing their environmental impact. Energy efficiency is a key consideration for staying competitive in today's LDPE film production market.



Learn More About LDPE Blown Film Machine with Wenzhou PLASTAR


By understanding the detailed capabilities of LDPE Blown Film Machines, processors can select models tailored to their specific production needs and stay competitive in their markets. The ideal blown film extrusion line combines proven technologies with intelligent, productivity-enhancing features to maximize return on investment. This allows film manufacturers to meet increasing quality and efficiency demands in a fast-paced industry.
